Bridging the Gap
1. Understanding the Communication Chasm
So, you're wondering if you can get RS485 and RS232 devices to talk to each other. It's a valid question! These are two common serial communication standards, but they operate in fundamentally different ways. Think of it like trying to get someone who only speaks French to understand someone who only speaks Japanese — without a translator, it's going to be a very confusing conversation. In the tech world, a translator is usually some kind of converter or adapter.
RS232, bless its heart, is an older standard, often found on legacy equipment. It's typically point-to-point, meaning one device talks directly to another. It uses voltage levels to represent data, typically with a relatively narrow range. RS485, on the other hand, is built for harsher environments and longer distances. It's differential, using the difference in voltage between two wires to represent data, making it more resistant to noise. Plus, RS485 supports multiple devices on a single bus.
The core issue is that RS232 is single-ended and RS485 is differential. Single-ended means it references a single voltage level against a common ground. Differential means it uses the difference in voltage between two wires, which is much more robust. So, the voltage levels and the way data is transmitted are just different. It's like trying to pour square pegs into round holes.
Attempting a direct connection between RS485 and RS232 without a converter is generally a bad idea. At best, nothing will happen. At worst, you could potentially damage your equipment. Nobody wants that, right? So, let's explore how we can safely bridge this communication gap.
2. The Translator

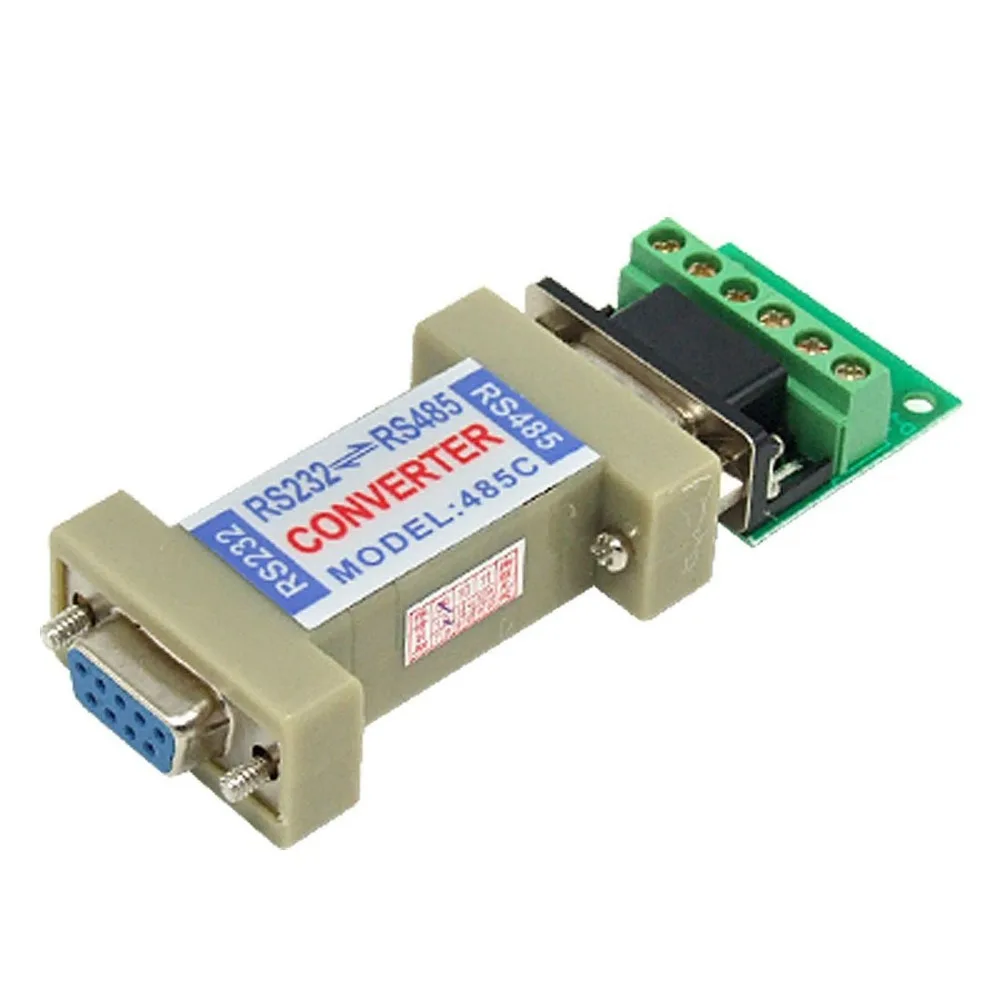

Thankfully, there's a handy device specifically designed to solve this problem: the RS232 to RS485 converter. This little box (or circuit board) acts as a translator, taking the RS232 signals and converting them into RS485 signals, and vice versa. It handles the voltage level differences, the signal encoding, and all the other technical wizardry so you don't have to pull your hair out trying to figure it all out yourself.
These converters come in various shapes and sizes, some with built-in power supplies, others requiring external power. Some are even isolated, providing an extra layer of protection against electrical surges or ground loops. Choosing the right converter depends on your specific application, the distance you need to cover, and the environment in which it will be operating. A little research goes a long way!
When selecting a converter, make sure to check its specifications carefully. Pay attention to the baud rate (the speed at which data is transmitted), the voltage levels it supports, and whether it provides any isolation. Also, consider the environment it will be used in. If it's a noisy industrial setting, you'll want a converter with good noise immunity. If it's outdoors, you'll need one that's weather-resistant.
Connecting the converter is usually pretty straightforward. You connect the RS232 side to your RS232 device and the RS485 side to your RS485 network. You'll likely need to configure the baud rate and other communication parameters on both devices to match. Once everything is set up correctly, your devices should be able to communicate seamlessly. Almost like magic, but it's really just good engineering!
