Alright, let's talk about JAL. Not the airline, although I'm sure they have interesting instruction manuals too. We're diving into the world of RISC-V assembly, and JAL, or Jump And Link, is a key player. Think of it as the workhorse of function calls. It's how your program knows where to go and, crucially, how to get back again.

Imagine you're baking a cake (because why not?). You follow a recipe, but sometimes the recipe says "go make the frosting on page 12." JAL is like saying "Okay, I'm going to page 12, but I'm also going to remember what page I was on so I can come back and finish the cake." Pretty important for a delicious outcome, right?

In the RISC-V world, "page 12" is another function or subroutine. JAL jumps to that function, executes its code, and then returns to the instruction after the JAL instruction. This 'remembering' part is crucial. Without it, your program would just wander off into the function and never return, like a tourist without a map.

Technically, JAL does this by storing the address of the next instruction (the one after the JAL itself) into a register, typically the return address register (x1 or ra). This way, the called function knows where to jump back to when it's done. It's a bit like leaving a breadcrumb trail, but with memory addresses instead of breadcrumbs (less messy, definitely).

2. Breaking Down the Mechanics

So, how does JAL actually do its magic? Let's dissect it a bit. The instruction itself takes two arguments: a destination register (rd) and an offset. The offset is essentially how far to jump, relative to the current instruction. Think of it as the page number in our cake recipe analogy.

The destination register (rd) is where the return address is stored. As mentioned before, it's usually the return address register (ra or x1), but it doesn't have to be. You could, in theory, store the return address in any register you like. However, sticking with ra is the convention and makes your code much easier to understand (and debug!). Trust me, future you will thank you.

The offset is a signed value, meaning you can jump forward or backward in memory. This is handy for calling functions that are located either before or after the current code. The offset is added to the address of the JAL instruction to calculate the address of the target function. Keep in mind the offset is typically encoded as a multiple of 2 (since instructions are often aligned on 2-byte boundaries), so the actual jump distance will be twice the encoded value.

Therefore, the key steps are: calculate the target address by adding the offset to the current instruction's address, store the return address (current instruction address + 4, since RISC-V instructions are 4 bytes) in the destination register (rd), and finally, jump to the calculated target address. Voila! Function call magic!

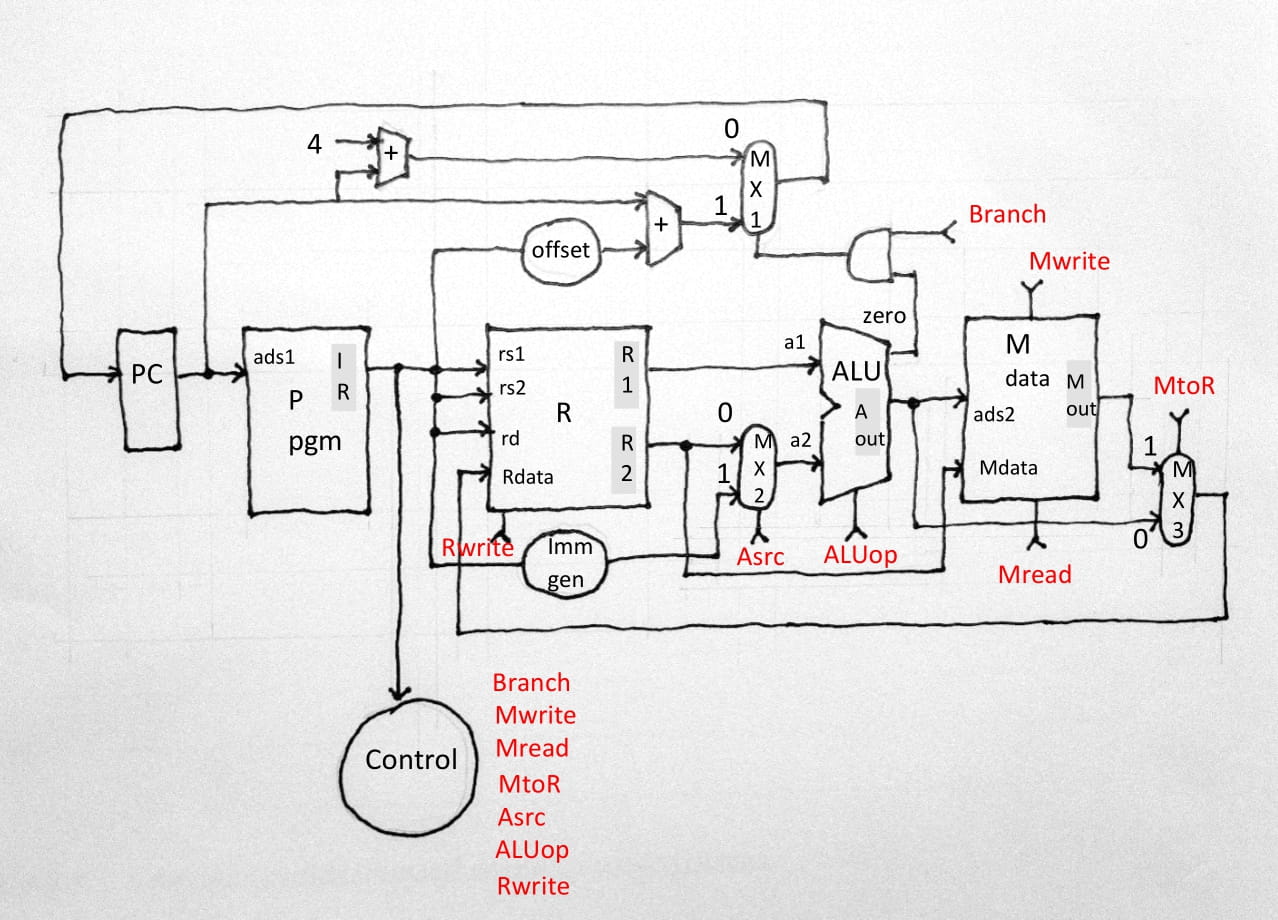

Solved Update The Datapath Of Single Cycle RISCV

JALR

3. When You Need Dynamic Jumping

Okay, so JAL is great for jumping to statically known addresses — addresses that are known at compile time. But what if you need to jump to an address that's calculated at runtime? That's where JALR, or Jump And Link Register, comes in.

Imagine you're writing a dispatch table, where you need to jump to a different function based on the value of a register. You can't use JAL in this case because the target address isn't known until the program is running. JALR to the rescue!

JALR takes three arguments: a destination register (rd), a source register (rs1), and an immediate offset. It works by adding the immediate offset to the value in the source register (rs1) to calculate the target address. This makes it super flexible for jumping to addresses stored in registers, calculated dynamically, or even retrieved from memory.

The "link" part is the same as JAL: the address of the next instruction (current instruction + 4) is stored in the destination register (rd), usually ra. So, even though the jump target is dynamic, JALR still ensures that the program knows how to return after the function is executed. Think of it as adaptable navigation, useful when the terrain changes unexpectedly.

4. JAL vs. JALR

So, how do you decide whether to use JAL or JALR? It really boils down to whether you know the target address at compile time or not. If you do, JAL is your go-to instruction. It's simpler and often more efficient.

If the target address is calculated at runtime or stored in a register, you'll need JALR. It's more flexible but also slightly more complex. Think of it like this: JAL is a direct flight to a known destination, while JALR is a connecting flight where you need to look up the gate number on a screen.

In essence, JAL is for static function calls where the address is known beforehand. JALR is for dynamic function calls where the address is determined at runtime. Choose wisely, and your RISC-V programs will thank you!

It's worth noting that JAL can be thought of as a pseudo-instruction. A pseudo-instruction is an instruction that isn't actually part of the RISC-V instruction set but is translated by the assembler into one or more real instructions. Often, the assembler will replace a JAL instruction into a JALR instruction where the register value is zero.

RISCV InstructionSet Cheatsheet By Erik Engheim ITNEXT

Practical Examples

5. A Simple Function Call

Let's see a simple example of JAL in action. Suppose you have a function called `my_function` and you want to call it from your main program. You would use the JAL instruction like this:
jal ra, my_function
This instruction tells the processor to jump to the address labeled `my_function`, store the return address in the `ra` register (x1), and start executing the code at `my_function`. When `my_function` is finished, it will typically use a `ret` instruction (which is just a shorthand for `jalr x0, ra, 0`) to jump back to the instruction after the `jal` instruction in the main program.

Inside `my_function`, you might have some code like this:
my_function:  # Do some stuff  ret # Return to the caller
The `ret` instruction effectively jumps back to the address stored in `ra`, which was saved by the JAL instruction. It's a perfectly choreographed dance of jumps and returns!

It is important to note that you should save register values that you want to persist across function calls before calling JAL to jump to the function. This prevents unintended side effects and maintains the program's state correctly.

RISCV Interpreter With Detailed Control Sequences

Common Pitfalls and How to Avoid Them

6. Debugging JAL Mishaps

Even though JAL is relatively straightforward, there are a few common pitfalls to watch out for. One is forgetting to save the return address register (ra) before calling another function. If you call a function within a function, the second JAL will overwrite the return address saved by the first JAL. This can lead to some very confusing bugs.

Another common mistake is miscalculating the offset. Remember that the offset is relative to the current instruction, and it's often encoded as a multiple of 2. Double-check your calculations to make sure you're jumping to the correct address. Using labels and letting the assembler calculate the offsets is generally a good practice to avoid these errors.

Finally, be careful when using JALR with dynamically calculated addresses. Make sure the register you're using contains the correct address before executing the JALR instruction. Debugging JALR-related issues can be tricky because the target address isn't known until runtime. Use a debugger to inspect the register values and verify that they are what you expect them to be.

Using the correct calling conventions is also extremely important. In RISC-V, registers are divided into caller-saved and callee-saved registers. Caller-saved registers are registers that the caller (the function that calls another function) is responsible for saving if it wants to preserve their values across the function call. Callee-saved registers are registers that the callee (the function that is called) is responsible for saving and restoring if it modifies them. Knowing which registers are caller-saved and callee-saved is crucial for writing correct and efficient RISC-V code. If you don't, it leads to unintended behavior and debugging becomes a nightmare.

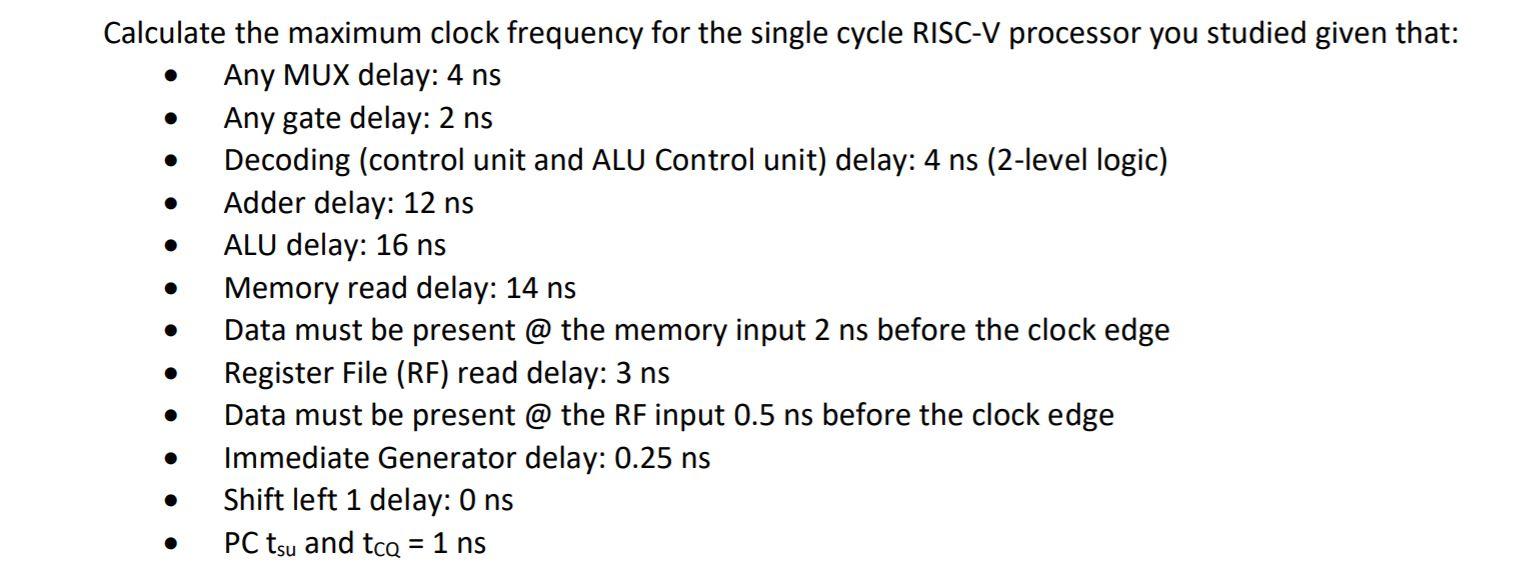

Solved 1. [12 Points] This Problem Uses The RISCV Program

FAQ

7. Frequently Asked Questions About JAL

Q: What happens if I don't use JAL when calling a function?
A: If you don't use JAL (or JALR), the program won't know how to return to the calling function. It will jump to the function, execute its code, and then just keep going, potentially into undefined memory. Not a good look for your program!

Q: Can I use JAL to jump to any address in memory?
A: Technically, yes, you can jump to any valid address in memory. However, it's generally a bad idea to jump to arbitrary locations, as it can lead to unpredictable behavior and crashes. JAL is best used for calling well-defined functions or subroutines.

Q: Is JAL specific to RISC-V?
A: While the name "JAL" is specific to RISC-V, the concept of a "jump and link" instruction is common in many assembly languages. Other architectures may use different names, but the underlying principle is the same: jump to a new address and save the return address.

Q: What does the 'link' part in Jump and Link mean?
A: The 'link' part refers to the fact that the instruction stores a link or return address. That stored return address allows a program to jump back from the subroutine call or function call.
